SILENT, POWERFULL SCRIBING

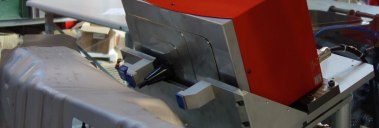

The integrated marking solution i124s is a powerful scribing machine that was designed for seamless integration into industrial production. Its virtually silent operation and large marking window allow this high performing machine to maintain a low cost of ownership with no consumables. The robotic cable is removable for fast and easy replacement.
Its solid metal exterior shields the interior mechanics providing protection from oil, dust, and stray particles. Popular for its simple and straightforward integration, the i124s marking system is perfect for intensive use in industrial environments.
This incredibly efficient scribing machine is delivered complete with integration software, programmable using the membrane-coated keyboard on the e10r controller.
Optimized for flawless integration on automated production lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be installed to control a motorized column and/or rotary axis. Self-diagnostic and machine history functions are also included.
The e10r can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.
